Enameled wire tester

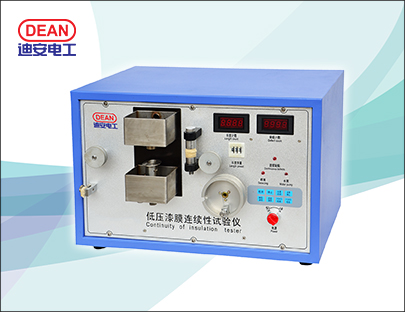

Continuity of Insulation Tester (Low voltage method)

Continuity of Insulation Tester (Low voltage method)
DYQ-005

Performance Characteristics of Product
Executive standard: GB/T4074.5-2008/IEC60851-5;Inspection standard: JB/T4279.12-2008
Used to test the film continuity (namely the pinhole number of enamelled wire sample per unit length) of enameled round wires with nominal conductor diameter of0.050mmand below;
The application of advanced SCM control allows for faster operation and stronger anti-interference capacity.
Test medium:30g/L sodium sulfate
Automatic circulation of solution;
Continual defect indication light would flash while samples being tested have more than 10 defects per second;
Equipped with independent continuous defect detecting circuit, automatically detect and display number of defects and continuous defects.


Major Technical Parameters

Test voltage

DC50±3V

Speed of test wire

16.5±1.5m/min

Length of test sample

Ranging 1~99m

Stress applied to sample

<0.03N

Effective length of felt electrode

20±2mm

Input power

AC220V±10%  50Hz

Consumed power

<100W

Overall dimensions

L×W×H  500×300×335mm

Weight

18kg
